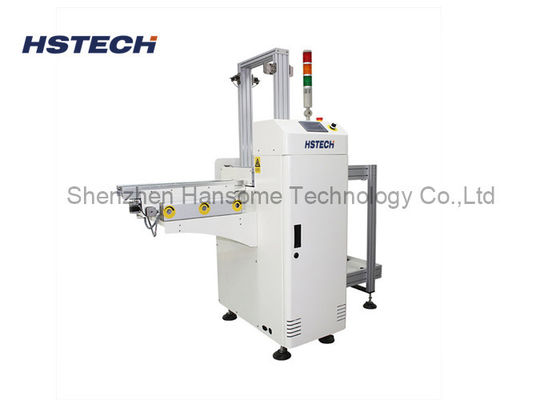

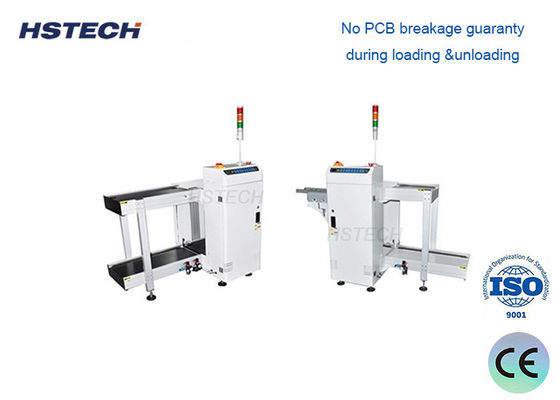

90W Brake Motor Drive PCB Unloader with Omron Optoelectronic Switch and Adjustable Speed for SMT Line

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Unloader

Power:

AC110V/AC220V,50/60Hz

PLC:

MITSUBISHI

Optoelectronic Switch:

Omron

Condition:

New

Structure:

Belt Conveyor

Speed:

Adjustable

Pcb Direction:

L-R Or R-L(customized)

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

Product Description

Max 300A 90W Brake Motor Drive PCB Unloader with Omron Switch

Advanced PCB unloader system featuring 90W brake motor drive and Omron switch for reliable SMT line operations.

Key Features

Constructed with durable stainless steel materials
Special anti-clamping plate structure with foolproof design
90W brake motor drive with ball screw mechanism for magazine stepping and elevator operation
Mitsubishi PLC control system
Selective pitch settings for flexible configuration
Automatic magazine change-over capability
Automatic magazine alignment using upper and lower pneumatic clamps
Tower light display for clear machine status indication
SMEMA signal compatibility

Application

Designed for collecting PCBs into magazines at the end of SMT production lines.

Technical Specifications

Model	HS-250ULD	HS-330ULD	HS-390ULD	HS-460ULD
Voltage	AC110V/220V, 50/60Hz, single phase, max 300A
PCB Dimension	(50×50)~(350×250)	(50×50)~(455×330)	(50×50)~(530×390)	(50×50)~(530×460)
Magazine Dimension	355×320×565	460×400×565	535×460×565	535×530×565
Magazine Quantity	Top side 1 pc, down 1 pc, or customized to hold more
Air Supply	0.4~0.6Mpa
Transport Height	900±20(mm) standard
Loading Time	6 sec
Magazine Change Over Time	Approximately 20 sec
Transport Direction	L to R, or R to L (optional)
PCB Thickness	Minimum 0.4mm
Step Pitch Selection	1-4 (10mm step pitches)
Communication	SMEMA
Machine Dimension	1700×780×1200	1900×860×1200	2200×920×1200	2200×1120×1200
Weight	Approx 160kg	Approx 200kg	Approx 240kg	Approx 260kg
