| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | KIC 2000 Thermal Profiler | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Color: | Silver | Control System: | PLC |
| OEM/ODM: | Available | Type: | Automatic |

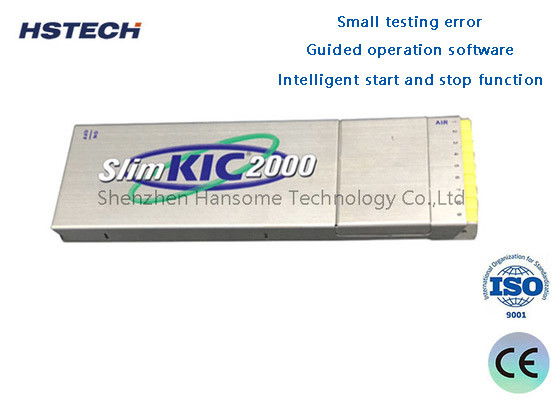

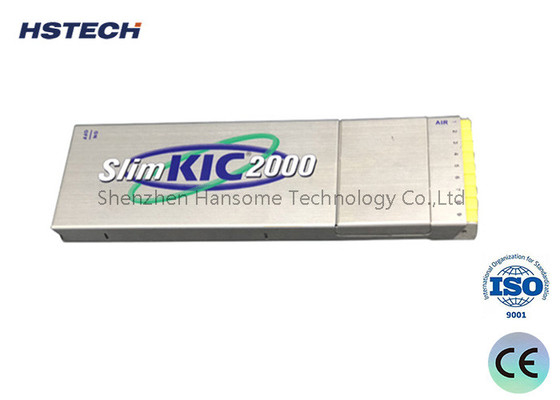

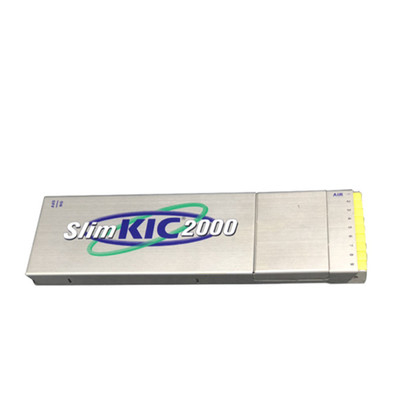

Intelligent Start And Stop Function Guided Operation Software KIC 2000 Thermal Profiler
Features
1, Small testing error.
2, Guided operation software, easy to learn.
3, Can test the wave and reflow temperature.
4, Intelligent start and stop function.
5, Transmit reception frequency: 433.92MHz.
6, Thermal Process Optimization for Lower Energy Use.
7, Standard SPC charting software include CpK, Help reveal change in the profile over time.
8, Standard Profile Overlay, show different process.
9, Robust and Compact Hardware with 1 year warranty.
10, 9 and 12 Channels (Standard Type K TC connectors).
Specifications
| Accuracy | ±1.2°C |
| Resolution | Variable 0.3 to 0.1°C |
| Internal Operating Temp | 0°C to 105°C |
| Thermo couple Compatibility | Type K, 9 or 12 channels |
| Temperature Range | -150°C to 1050°C |
| Computer Capability | PC |
| Power Requirements | 9V alkaline battery |
| Thermal Receiver | 433.92 MHz |
| Dimensions | See Temperature Tolerance Chart below for specifications. |
Standard configuration
1, Tester host 1 pc
2, Test insulation housing 1 pc
3, Suitcase 1 pc
4, Temperature test wire 1 pc
5, Data disc 1 pc
6, User's manual
7, Inspection report
8, Data line 1pc
