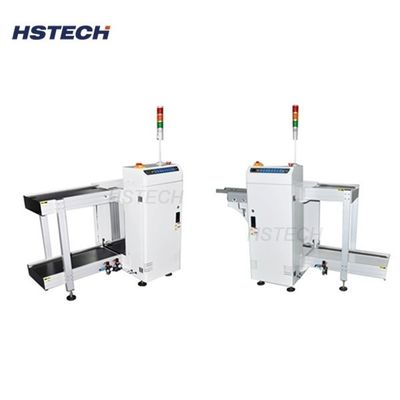

Double Track PCB Unloader with 6 Magazines Loading Capability and PLC Control System for SMT Production

Double Track PCB Unloader with 6 Magazines Loading Capability and PLC Control System for SMT Production

Brand Name:	HSTECH
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union,
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Double Track Unloader

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Application:

Electronic Assembly

Control System:

PLC

Power Consumption:

200W

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Highlight:

Double Track Design PCB Unloader

6 Magazines Loading Capability SMT Unloader

PLC Control System PCB Handling Equipment

Product Description

High Quality Double Track 6 Magazines PCB Unloader with PLC Control System

This advanced PCB unloader is designed to collect printed circuit boards into two magazines simultaneously from dual track equipment, featuring a sophisticated PLC control system for optimal automation and efficiency.

PCB Unloader Introduction

This unit efficiently collects PCBs into two magazines from dual track equipment simultaneously, ensuring continuous production flow in SMT manufacturing processes.

Working Principle

Board Receiving Mechanism: Utilizes robotic systems or conveyor belts with vacuum adsorption to securely remove mounted PCBs from the mounter
Transfer Mechanism: Transfers connected PCBs to designated output stations while maintaining horizontal stability to prevent component position deviation
Precise Positioning: Equipped with visual recognition systems for real-time monitoring of PCB position and angle, with control systems using feedback data for accurate transfer and placement
High Automation: Modern SMT unloaders operate fully automatically without manual intervention, enabling rapid and efficient PCB transfer between processes
Mounter Coordination: Working sequences are synchronized with previous mounters to ensure continuous and seamless PCB transfer between manufacturing stages

Key Features

Advanced PLC Control System
Dual tracks and dual lift platforms design
6 magazines loading capability
Optimized gas circuit design for smooth and stable PCB transmission
Standard SMEMA compatibility

Technical Specifications

Type	DU-250	DU-300	DU-400	DU-500
Power Supply	AC110V/AC220V 50H60Hz	AC110V/AC220V 50H60Hz	AC110V/AC220V 50H60Hz	AC110V/AC220V 50H60Hz
Air Supply	5kgf/C M2	5kgf/C M2	5kgf/C M2	5kgf/C M2
PCB Size(mm)	350*50~250	445*50~330	530*50~390	535*50~460
PCB Direction	left to right or right to left	left to right or right to left	left to right or right to left	left to right or right to left
Magazine Size(mm)	335320565	460400565	535460565	535530565
Step pitches(mm)	10,20,30,40	10,20,30,40	10,20,30,40	10,20,30,40
Transport Height(mm)	900±20	900±20	900±20	900±20
Transmission Speed	6m/S	10m/S	10m/S	10m/S
Main Motor Power	440W	440W	440W	440W
Machine Size(mm)	151015301250	191016301250	216017601250	216019001250
Weight(kgs)	320	350	380	410
