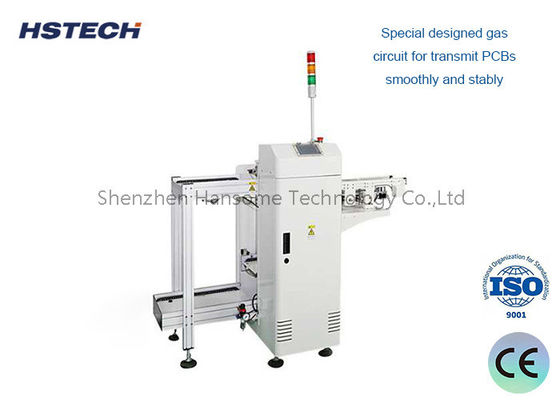

Automatic PCB Unloader with Adjustable Speed L-R or R-L Direction and Panasonic PLC for SMT Line

Automatic PCB Unloader with Adjustable Speed L-R or R-L Direction and Panasonic PLC for SMT Line

Brand Name:	HSTECH
Model Number:	HS-460ULD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Unloader

Power:

AC110V/AC220V,50/60Hz

Optoelectronic Switch:

Omron

PLC:

Panasonic

Speed:

Adjustable

Pcb Direction:

L-R Or R-L(customized)

Packaging Details:

Wooden Case

Supply Ability:

500 pcs per month

Highlight:

Adjustable Speed PCB Unloader

L-R or R-L Direction PCB Handling Equipment

Panasonic PLC SMT Unloader

Product Description

PCB Unloader Automatic Magazine L-R or R-L PCB Handling Equipment with Belt Conveyor

This automatic PCB unloader with belt conveyor efficiently collects PCBs into magazines at the end of SMT production lines, featuring flexible left-to-right or right-to-left transport direction options.

Product Overview

The PCB Unloader Automatic Magazine is designed for reliable PCB handling in SMT manufacturing environments. It features stainless steel construction, intelligent anti-clamping mechanisms, and automated magazine change-over capabilities for continuous operation.

Key Features

Stainless steel construction for durability and longevity
Special anti-clamping plate structure with foolproof design
90W brake motor drive with ball screw for precise magazine stepping
Panasonic PLC control system for reliable operation
Selective pitch settings with 1-4 step pitch options

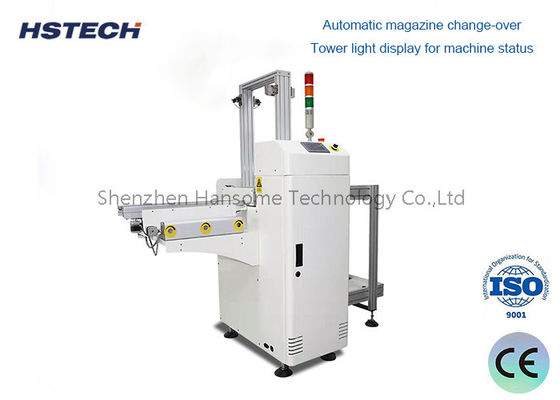

Automatic magazine change-over system
Automatic magazine alignment using upper and lower pneumatic clamps
Tower light display for clear machine status indication
SMEMA signal compatibility for seamless integration

Application

This equipment is specifically designed for collecting PCBs into magazines at the end of SMT production lines, ensuring efficient workflow and proper board handling.

Technical Specifications

Model	HS-250ULD	HS-330ULD	HS-390ULD	HS-460ULD
Voltage	AC110V/220V, 50/60Hz, single phase, max 300A
PCB Dimension	(50×50)~(350×250)	(50×50)~(455×330)	(50×50)~(530×390)	(50×50)~(530×460)
Magazine Dimension	355×320×565	460×400×565	535×460×565	535×530×565
Magazine Quantity	Top side 1 pc, down 1 pc, or customized to hold more
Air Supply	0.4~0.6Mpa
Transport Height	900±20(mm) standard
Loading Time	6 sec
Magazine Change Over Time	Around 20 secs
Transport Direction	L to R, or R to L, optional
PCB Thickness	Min 0.4mm
Step Pitch Selection	1-4 (10mm step pitches)
Communication	SMEMA
Machine Dimension	1700×780×1200	1900×860×1200	2200×920×1200	2200×1120×1200
Weight	Approx 160kg	Approx 200kg	Approx 240kg	Approx 260kg

Product Images

Packaging & Delivery Information

Item	PCB Unloader
Package	1 set into one wooden carton as safety condition
External Dimension	1700×780×1200mm
Weight	About 20-35kgs
Delivery	About 15-20 working days
Payment	D/P, T/T, Western Union, MoneyGram
Port	Shenzhen
Shipment Options	A. By Courier: 4-7 Working days by special offer B. By Air: 7 Working days at appointed airport C. By Sea: 20-25 Working days at appointed port
