PLC Control Double Track Unloader with 6 Magazines Loading Capability for SMT Production

PLC Control Double Track Unloader with 6 Magazines Loading Capability for SMT Production

Brand Name:	HSTECH
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P,T/T,Western Union,
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Double Track Unloader

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Application:

Electronic Assembly

Control System:

PLC

Power Consumption:

200W

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Highlight:

PLC Control PCB Unloader

6 Magazines Loading Double Track Unloader

Dual Track Design SMT Unloader

Product Description

Flexible Operation PLC Control Double Track Unloader with 6 Magazines Loading Capability

This advanced PCB unloader is designed to collect printed circuit boards into two magazines simultaneously from dual track equipment, featuring PLC control and flexible operation capabilities.

Product Overview

The Double Track Unloader is specialized equipment for automated unloading operations, utilizing two independent conveyor belts or tracks to achieve efficient unloading across two separate areas simultaneously.

Working Principle

The system consists of two parallel conveyor belts or slide rails that operate independently. PCBs are transported through one end and unloaded to two separate areas via the dual tracks. Each track's speed and operation can be controlled independently for optimized bidirectional unloading efficiency.

Key Features

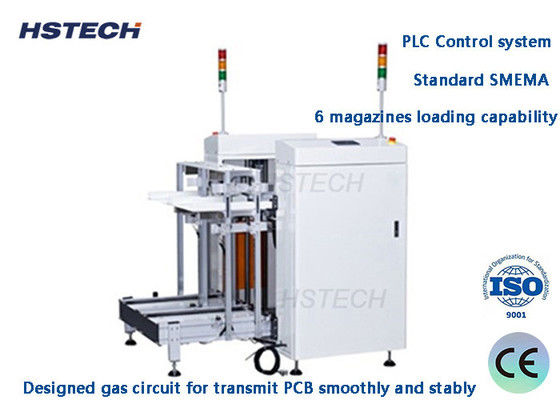

PLC Control System for precise operation
Dual tracks with dual lift platforms design
6 magazines loading capability
Optimized gas circuit for smooth and stable PCB transmission
Standard SMEMA compatibility
Simultaneous unloading of two cargo loading areas
Independent track control for flexible operation
Compact design for space-efficient installation
Fully automated operation requiring minimal human intervention

Applications

Ideal for cargo loading/unloading operations, warehousing and logistics centers, port terminals, and factory production lines where automated unloading of raw materials or finished products is required.

Technical Specifications

Type	DU-250	DU-300	DU-400	DU-500
Power Supply	AC110V/AC220V 50/60Hz	AC110V/AC220V 50/60Hz	AC110V/AC220V 50/60Hz	AC110V/AC220V 50/60Hz
Air Supply	5kgf/cm²	5kgf/cm²	5kgf/cm²	5kgf/cm²
PCB Size (mm)	350×50-250	445×50-330	530×50-390	535×50-460
PCB Direction	Left to right or right to left	Left to right or right to left	Left to right or right to left	Left to right or right to left
Magazine Size (mm)	335×320×565	460×400×565	535×460×565	535×530×565
Step Pitches (mm)	10,20,30,40	10,20,30,40	10,20,30,40	10,20,30,40
Transport Height (mm)	900±20	900±20	900±20	900±20
Transmission Speed	6m/S	10m/S	10m/S	10m/S
Main Motor Power	440W	440W	440W	440W
Machine Size (mm)	1510×1530×1250	1910×1630×1250	2160×1760×1250	2160×1900×1250
Weight (kgs)	320	350	380	410

Packaging & Delivery Information

Package	1 set per wooden carton for safe transport
External Dimension	1510×1530×1250mm
Weight	Approximately 320-410 kgs
Delivery Time	Approximately 15-20 working days
Payment Methods	D/P, T/T, Western Union, MoneyGram
Port	Shenzhen
Shipment Options	A. Courier: 4-7 Working days B. Air: 7 Working days to appointed airport C. Sea: 20-25 Working days to appointed port
