PCB Destacker Automatic Bare Board Loader PCB handling equipment for SMT Lines

Name: PCB Destacker Automatic Bare Board Loader PCB handling equipment for SMT Lines
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-DS400
Price: 6,005.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-DS400
MOQ:	1 PC
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	50 PC/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO

Product Name:

PCB Destacker

Other Name:

Bare Board Loader

PCB Thickness:

0.6~4.0mm

Air Pressure:

0.6Mpa

Power Supply:

AC110V/220V,Single Phase

Warranty:

1 Year

Packaging Details:

Wooden

Supply Ability:

50 PC/Month

Highlight:

automatic PCB destacker for SMT

bare board loader equipment

PCB handling machine with warranty

Product Description

Automatic PCB Destacker for SMT Production Lines

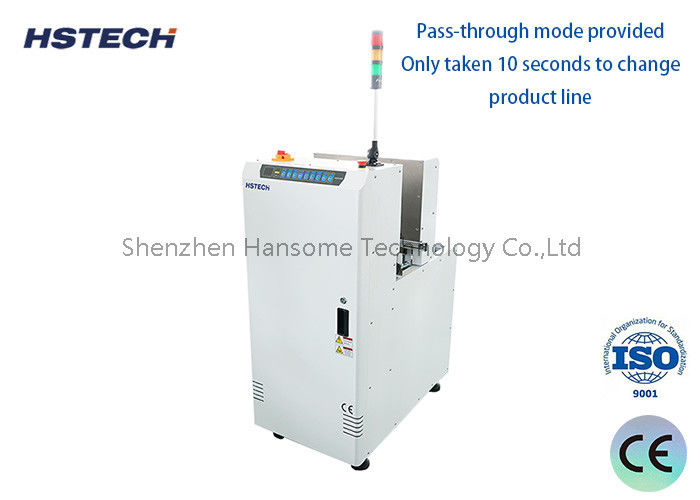

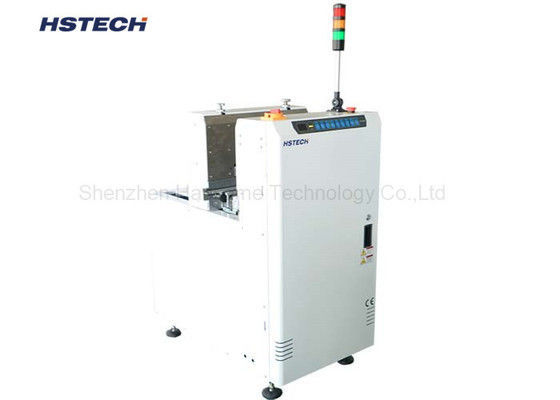

The HSTECH Destacker (Bare Board Loader) is an automatic PCB loading solution designed to efficiently separate and load bare PCBs onto an SMT production line. With PLC program control, a stable aluminium structure, ESD-safe transporting belt and SMEMA compatibility, the machine provides a practical solution for automated PCB handling.

The Destacker is designed for production environments where continuous PCB loading, quick product changeover and stable board transportation are important. It can also operate in pass-through mode, providing greater flexibility when integrating the machine into different PCB production line configurations.

HSTECH offers two standard models, HS-DS400 and HS-DS530, supporting different PCB size ranges to meet various production requirements.

Key Features

PLC Program Control

The Destacker uses PLC program control to manage the machine's operating sequence and PCB loading process. The PLC-based control system provides stable and convenient operation for daily production, while allowing the machine to work as part of an automated SMT PCB handling system.

Heavy-Duty Aluminium Structure

The machine adopts an aluminium structure with a heavy bottom design. The reinforced base helps prevent unwanted machine shifting during operation and provides a stable platform for continuous PCB handling. This design is especially suitable for production environments where equipment stability is important for reliable board transfer.

Pass-Through Mode

A pass-through mode is provided for flexible production line integration. Depending on the production layout, the Destacker can be configured to support different PCB handling requirements, making it easier to integrate with upstream and downstream SMT equipment.

Quick Product Changeover

The Destacker is designed for convenient product changeover. According to the specification, only approximately 10 seconds are required to change the product line. This quick changeover capability is particularly useful for production environments handling multiple PCB models and frequent product changes.

User-Friendly Control

The machine features convenient control buttons for straightforward operation. A touchscreen control option is also available, providing an alternative interface for customers who require a more convenient machine operation experience.

Uninterrupted PCB Loading

The Destacker supports uninterrupted loading, helping maintain a continuous PCB supply to the production line. This feature can reduce unnecessary interruptions during PCB handling and is suitable for automated SMT production environments where stable board feeding is required.

ESD Transporting Belt

The machine is equipped with an ESD transporting belt for PCB transportation. The ESD-oriented transport design is suitable for electronics manufacturing environments where electrostatic protection is an important consideration during PCB handling.

Intelligent Machine Error Display

The Destacker provides a self-programmed machine error display system. Different machine errors are assigned different error codes. Each error code corresponds to relevant maintenance instructions, which are placed on the back side of the machine door. This allows operators and maintenance personnel to quickly identify the type of machine error and refer to the corresponding maintenance information.

SMEMA Compatible

The Destacker is SMEMA compatible, making it suitable for integration with compatible SMT production line equipment. This allows the Bare Board Loader to be incorporated into an automated PCB handling system together with other SMT line equipment.

How the PCB Destacker Works

The Bare Board Loader / PCB Destacker is positioned at the beginning of the PCB production line. Bare PCBs are loaded into the machine, and the Destacker separates and transfers the boards individually to the downstream production equipment.

The machine then continues the loading process according to the programmed operating sequence, providing a stable supply of bare PCBs to the SMT line. This type of automated PCB handling can help manufacturers reduce manual board handling and improve the consistency of PCB feeding between processes.

Designed for SMT PCB Handling

The HSTECH Destacker is suitable for PCB production lines where automated bare-board loading is required. Typical applications include:

SMT production lines
PCB assembly lines
PCBA manufacturing
Electronics manufacturing
EMS production
OEM/ODM electronics production
Automated PCB handling systems

It can be used as part of a broader PCB handling solution together with PCB conveyors, buffers, unloaders and other SMT line equipment.

Technical Specifications

Model	Efficient PCB Size	Machine Dimensions	Weight
HS-DS400	50 × 50 - 400 × 400 mm	505 × 825 × 1200 mm	200 kg
HS-DS530	50 × 50 - 530 × 500 mm	600 × 920 × 1200 mm	250 kg

Why Choose HSTECH PCB Destacker?

Stable PCB Handling

The heavy-duty aluminium structure and heavy bottom design help provide stable equipment operation during PCB loading.

Flexible Production

Pass-through mode and SMEMA compatibility allow the machine to be integrated into different SMT production line configurations.

Fast Changeover

Approximately 10 seconds are required for product line changeover, making the machine suitable for production environments with multiple PCB models.

Continuous Loading

The uninterrupted loading function helps maintain a continuous PCB supply for downstream SMT processes.

Easy Maintenance

The programmed error display and corresponding maintenance instructions help operators identify machine problems more efficiently.

ESD Protection

The ESD transporting belt is designed for PCB handling applications in electronics manufacturing environments.

Typical SMT Line Application

A typical PCB handling configuration can be arranged as:

Bare PCB Loading -> PCB Destacker -> Conveyor -> Solder Paste Printing -> Pick & Place -> Reflow -> AOI -> PCB Unloading

The HSTECH Destacker can serve as the front-end PCB loading equipment, automatically feeding bare PCBs into the SMT production process. For manufacturers upgrading an existing production line, the Destacker can also be considered as an automation solution to reduce manual PCB loading operations.

PCB Destacker for Multiple PCB Production

For EMS and PCBA manufacturers handling different PCB models, quick product changeover can be an important part of production flexibility. The HSTECH Destacker is designed with a quick changeover concept, requiring approximately 10 seconds to change the product line. This makes it suitable for production environments where different PCB products need to be processed on the same line.

Combined with PLC control, convenient operation and pass-through functionality, the machine provides a practical solution for automated bare PCB handling.
