TCK Series Thermal Profiler 80000 Data Point 0.1C Resolution RF Transceiver

TCK Series Thermal Profiler 80000 Data Point Per Channel 0.1C Resolution RF Transmitter Receiver Hi Temp Adhesive Tape Reflow Oven Thermal Profiler PCB Temperature Profiler

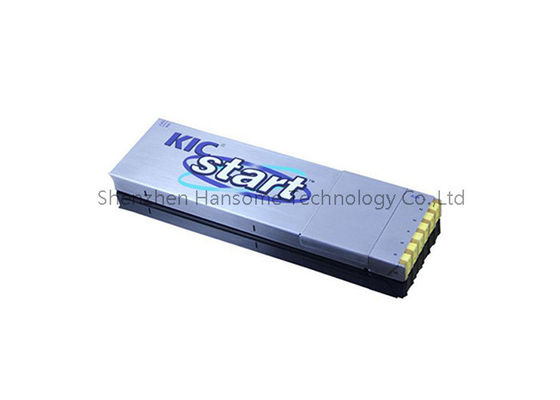

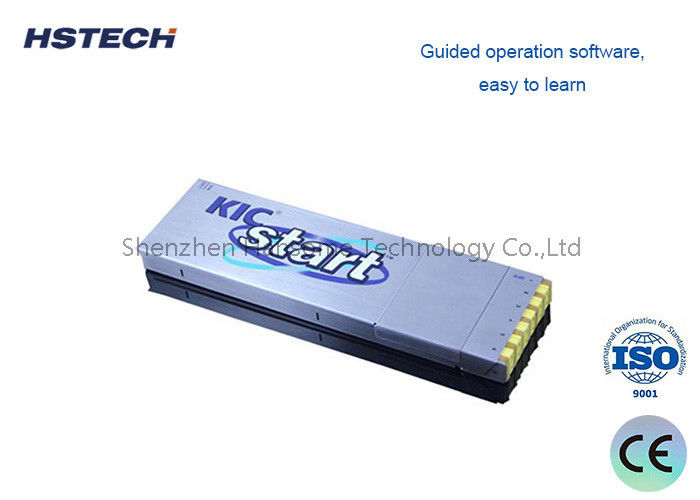

TCK Series Thermal Profiler is a professional thermal profile recorder, also widely known as reflow oven thermal profiler, PCB temperature profiler and thermal profiling system, specially designed for industrial high-temperature oven temperature monitoring. It tracks and records complete real-time temperature curves while traveling through reflow ovens, wave solder machines and other thermal processing equipment. Equipped with RF transceiver and matched hi-temp adhesive tape, this thermal profiler can collect accurate temperature data directly on PCBs and workpieces. Each channel supports up to 80000 data points with 0.1°C temperature resolution, capturing subtle temperature variations for process verification, quality inspection and oven parameter tuning. Paired with professional thermal analysis software, it visualizes heating, soaking and cooling curves and automatically calculates key thermal indicators for production quality control.

• 1. Thermal profiler 2. Insulation box
• 3. Temperature test line 4. Data download line
• 5. Charger 6. Hi-temp adhesive tape
• 7. Software CD 8. “+” screwdriver 9. Tweezers
• 10. Insulated gloves 11. Solder wire
• 12. Scissors 13. Instrument box
• 14. User Manual 15. Acceptance Certificate
• 16. RF Transceiver (Choose Composition)
• 17. Wave Test System (Choose Composition)

• Thermocouple: K-type thermocouple
• Sampling interval:0.05sec---600sec Set with software
• Record data:80000 point/channel, Can record 20 sets profile
• Resolution: 0.1℃
• Temperature measuring range: 0—1000℃
• Temperature measuring accuracy: ±1.0℃
• Total power: ≤120mW
• Operating voltage:3.6VDC, rechargeable battery
• Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
• Insulation box:245(L)×100(W)×30(H)mm
• Start Mode : Manual, specified time or specified temperature
• Record mode: Monitor/Record
• Connection mode:USB/RF
• Software version:Profilermanager 2.0

• SMT reflow oven thermal profiling and process validation
• Wave soldering temperature profile testing
• PCB assembly thermal process monitoring and quality audit
• Electronic component thermal treatment and reliability test
• Powder coating and paint curing oven temperature profiling
• Industrial furnace and heat treatment oven temperature recording
• Electronics manufacturing process qualification and ISO quality documentation
• New product thermal process development and oven parameter optimization

• Focused on SMT Process Stability
  Designed for reflow and wave soldering environments where accurate temperature data directly affects yield and reliability.
• Clear Profile Analysis
  ProfileManager 2.0 supports temperature curve review, key process data analysis, and multi-profile comparison for efficient troubleshooting.
• Reliable Data Storage
  Flash-based recording helps prevent data loss and supports repeatable process documentation.
• Easy Integration into Daily Workflows
  Compact size, simple operation, and USB/RF data transfer make it practical for production engineers and quality teams.
• Complete After-Sales Support
  We provide product consultation, accessory supply, and technical guidance to help customers get started quickly.

If you are looking for a reliable SMT thermal profiler, reflow oven temperature profiler, or wave soldering temperature tester, the TCK Series is a practical choice for stable process control and consistent soldering quality.

Contact us for the latest model options, channel configurations, accessories, and quotation. Our team will help you select the right TCK configuration for your reflow and wave soldering requirements.
